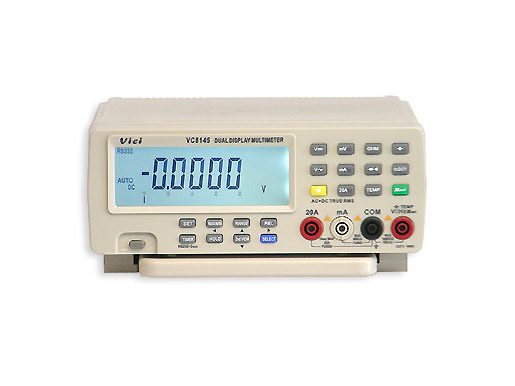

Multimetro digitale da banco, con interfaccia RS232, per misure di tensioni, correnti, resistenze, frequenze, capacità e temperature.
DC voltage:
- range: 80 mV / 800 mV / 8 V / 80 V / 800 V / 1000 V
- accuracy: ±0.05% + 5 digit
AC voltage:
- range: 80 mV / 800 mV / 8 V / 80 V / 750 V
- accuracy: ±0.5% + 30 digit
DC current:
- range: 80 mA / 800 mA / 8 A / 20 A
- accuracy: ±0.1% + 5 digit
AC current:
- range: 80 mA / 800 mA / 8A / 20 A
- accuracy: ±0.5% + 30 digit
Resistance:
- range: 800 Ω / 8 kΩ / 80 kΩ / 800 kΩ / 8 MΩ / 80 MΩ
- accuracy: ±0.05% + 3 digit
Frequency:
- range: 80 Hz / 800 Hz / 8 kHz / 80 kHz / 800 kHz / 8 MHz / 80 MHz
- accuracy: ±0.03% + 2 digit
Capacitance:
- range: 10 nF / 100 nF / 1 µF / 10 µF / 100 µF
- accuracy: ±2.0% + 3 digit
Temperature:
- range: -50°~1372° C
- accuracy: ±1.5% + 2 digit
Quadrate wave:
- range: 3 V / 0.5 Hz - 5 kHz / 1% - 99%
- accuracy: ±0.02%
Diode, AC/DC measuring, continuity test, overloading protection
Input impedance: 10 MΩ
Sampling frequency: 4 times/sec
AC frequency response: 40 Hz - 50 kHz
Dimensions: 250 x 220 x 100 mm
Weight: 2 kg
