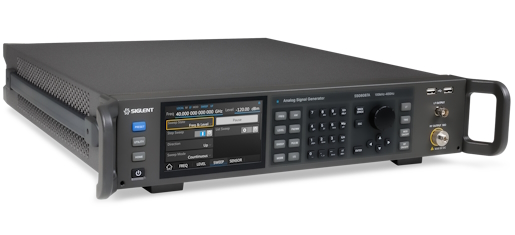

Generatore RF vettoriale, CW MODE da 100 kHz a 8 GHz, IQ MODE da 10 MHz a 8 GHz, da -140 a +30 dBm, risoluzione 0.001 Hz.
Frequency: 8 GHz
Frequency setting resolution: 0.001 Hz
Level setting range: -140 dBm to 30 dBm
Phase Noise: -132 dBc/Hz @ 1 GHz, 10 kHz offset (typ.)
Level error: ≤ 0.7 dB (typ.)
Modulation: AM/FM/PM analog modulation, internal and external modulation options
Supports pulse modulation function, pulse train generator, and user-defined pulse sequences (opt.)
Capable of real-time output of QAM, FSK, ASK, PSK, multi-tone, and various other modulated signals
Supports generation of common communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, IOT, etc., when used with SigIQPro software
Real-time IQ Baseband AWGN?Supports real-time IQ baseband AWGN, allowing accurate control of signal and noise power,simplifying additional measurements and calculations required for receiver measurements
Power Meter Control Kit?Facilitates power measurement, control of power output, and line loss correction using a power meter
5" TFT capacitive touch screen, mouse and keyboard supported
Web browser remote control on PC and mobile terminals
Standard interface: USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet)
Optional interface: GPIB
Datasheet: Download
