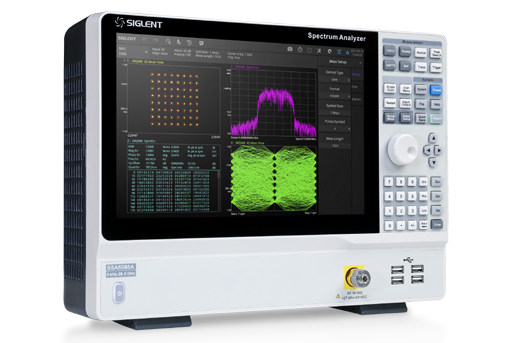

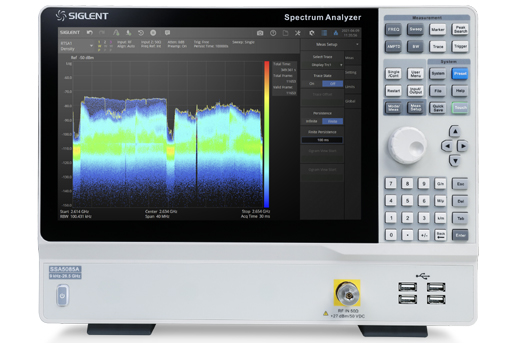

Analizzatore di spettro da 9 kHz a 26,5 GHz, risoluzione 1 Hz, interfaccia LAN e USB, Touch screen e Web browser.
Frequency range: 9 kHz ~ 26.5 GHz
Frequency resolution: 1 Hz
Range: 0 Hz (Zero Span), 100 Hz to max frequency
Accuracy: ± Span / (number of sweep points - 1)
Resolution bandwidth (-3dB): 1 Hz ~ 10 MHz, in 1-3-10 sequence
Measurement range:
DANL to +10 dBm, 100 kHz ~ 1 MHz, Preamp off
DANL to +23 dBm, 1 MHz ~ 26.5 GHz, Preamp off
Reference level: -170 dBm to +23 dBm, 1 dB steps
Preamplifier: 20 dB (nom.), 100 kHz ~ 26.5 GHz
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
25 MHz/40 MHz Analysis Bandwidth
100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
Analog Modulation Analysis and Vector Digital Modulation Analysis
12.1 inch Multi-Touch Screen, HDMI output
Web Browser Remote Control on PC and Mobile Terminals and File Operation
