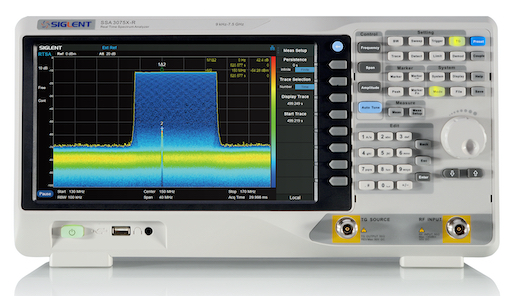

Analizzatore di spettro Real-Time, da 9 kHz a 5 GHz, risoluzione 1 Hz ~ 3 MHz, interfaccia LAN e USB 2.0, Multi-Touch screen e Webserver.
Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz
Vector Network Analyzer Frequency Range from 100 kHz to 5.0 GHz
-165 dBm/Hz Displayed Average Noise Level (typ.)
-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, typ.)
Level Measurement Uncertainty < 0.7 dB (typ.)
1 Hz Minimum Resolution Bandwidth (RBW)
Preamplifier Standard
Tracking Generator Standard
Up to 40 MHz Real-Time analysis bandwidth (opt.)
100% POI 7.20 μs, Dynamic Range 60 dB
Multi-view for Density, Spectrogram, PvT and 3D
Advanced Measurement Kit (opt.)
Reflection Measurement Kit (opt.)
Modulation Analysis Mode (opt.)
EMI Measurement Mode (opt.)
10.1 inch Multi-Touch screen , mouse and keyboard supported
Web Browser Remote Control on PC and Mobile Terminals and File Operation
