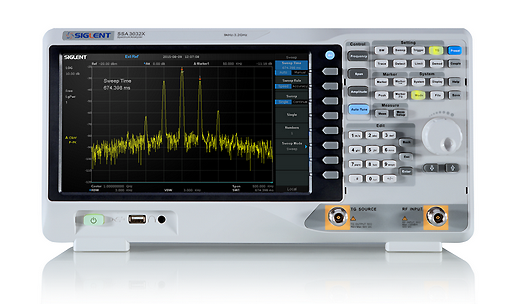

Analizzatore di spettro da 9 kHz a 3,2 GHz, risoluzione 1 Hz, interfaccia LAN e USB 2.0.
Frequency range: from 9 kHz to 3.2 GHz
Resolution bandwidth: from 1 Hz to 1 MHz, in 1-3-10 sequence
Displayed average noise level: -161 dBm/Hz, normalize to 1 Hz (typ.)
Phase noise: < -98 dBc/Hz @1 GHz, 10 kHz offset
Amplitude precision: < 0.7 dB
All-Digital IF Technology
Standard preamplifier
Optional:
- up to 3.2 GHz tracking generator kit INCLUSO
- reflection measurement kit
- advanced measurement kit
- EMI Pre-compliance measurements kit
Optional accessories: utility kit, Refl-SSA3000X, near field probe, N-SMA cable, N-N cable, N-BNC cable, soft carrying bag
Display: TFT LCD, 1024 x 600 (waveform area 751 x 501), 10.1 inch
Storage: internal (Flash) 256 MB, external (USB storage device) 32 GB
Dimension: 393 x 207 x 116.5 mm
Weight: 4.60 kg
Datasheet: Download
