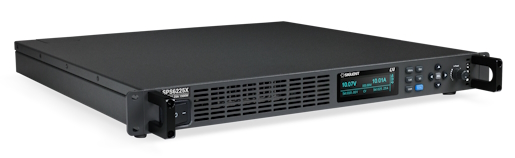

Alimentatore DC switching programmabile, 200 V, 25 A, 1500 W.
Rated voltage: 200 V
Rated current: 25 A
Rated power: 1500 W
Setting and readback resolution: 10 mV, 10 mA
OVP, OCP, LPP, OTP protection
CV, CC priority mode selection
Load transient recovery time < 2.5 ms
Adjustable voltage and current slew rates
Internal output discharge circuit
Remote Sense function
Local list function with up to 50 steps
External analog voltage control. Voltage and current monitoring outputs
3.12" OLED high-brightness display
Equipped with USB, LAN standard, optional USB-GPIB

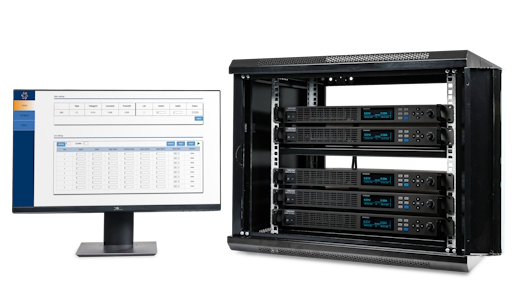

44 mm (1U) height, 19" width for convenient rack mounting
Datasheet: Download
