SIGLENT

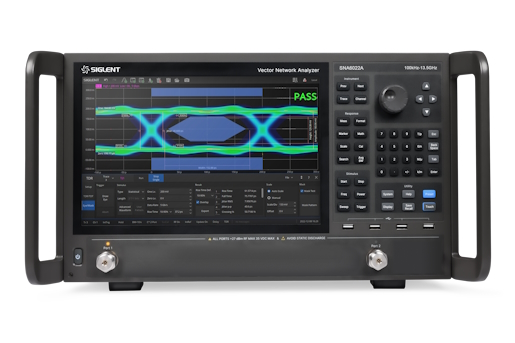

SNA6022A

Analizzatore di reti vettoriale, da 100 kHz a 13,5 GHz, 2 porte, risoluzione 1 Hz, interfaccia LAN e USB, display 12.1" touchscreen.

34135.00
Iva Esc.
Il costo di trasporto indicato può variare in funzione del numero dei colli

Frequency range: 100 kHz ~ 13.5 GHz
Ports: 2
Frequency resolution: 1 Hz

Level resolution: 0.05 dB
Range of IFBW: 1 Hz ~ 10 MHz
Setting range of output level: -55 dBm ~ +10 dBm

Dynamic range: 135 dB
Bias-Tees: support
Interface: LAN, USB Device, USB Host (USB-GPIB)

Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer
Display: 12.1" touch screen
Video output: HDMI/DVI-D/DP

Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration

Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement, Material Measurement
