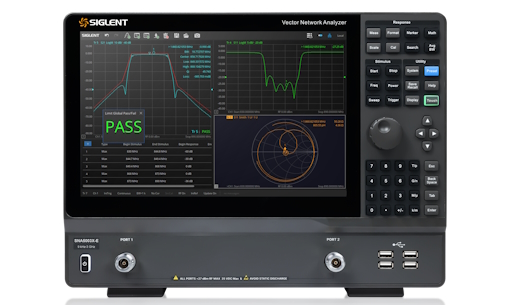

Analizzatore di reti vettoriale, da 9 kHz a 3 GHz, 2 porte, risoluzione 1 Hz, interfaccia LAN e USB, display 12.1" touchscreen.
Frequency range: 9 kHz ~ 3 GHz
Frequency resolution: 1 Hz
Level resolution: 0.05 dB
Range of IFBW: 1 Hz ~ 10 MHz
Setting range of output level：-40 dBm ~ +10 dBm
Dynamic range: 125 dB (typ.)
Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis
Internal Bias-Tee connections
Interface: LAN, USB Device, USB Host (USB-GPIB)
Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
12.1-inch touch screen
Video output: HDMI
English
