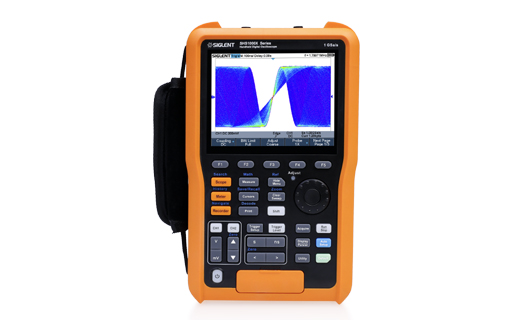

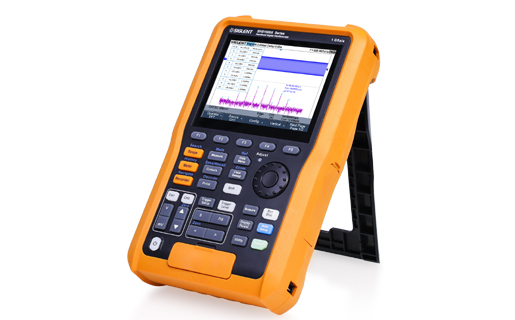

Oscilloscopio digitale portatile con DMM, 2 canali isolati, 200 MHz, 1 GSa/s, memoria fino a 12 Mpts.
Bandwidth: 200 MHz
Sampling Rate (max.): 1 GSa/s
Channels: 2 isolated analog oscilloscope channels, 1 multimeter channel
Memory Depth (max.): 6 Mpts/CH (dual-channel mode), 12 Mpts/CH (single channel mode)
Waveform Capture Rate (max.): 100.000 wfm/s (normal mode), 400.000 wfm/s (sequence mode)
Trigger types: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger & Decoding: I2C, SPI, UART, CAN, LIN
Data logger (recorder)
- Sample logger: the max. sample rate is 25 kSa/s, the min. sample rate is 1 Sa/s
- Measurement Logger: the max. interval is 10 minutes, the min. interval is 0.1 sec. The max. items of logging is 4
Max input Voltage
(Scope)
- CAT II 300Vrms Between BNC Signal and Protecting Earth
- CAT II 30Vrms Between BNC GND and Protecting Earth
- CAT II 300Vrms Between BNC Signal and BNC GND

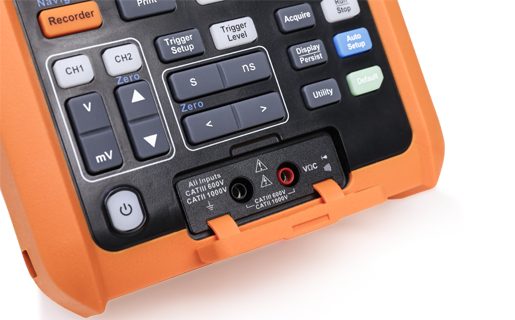

(Meter)
- CAT III 300Vrms, CAT II 600Vrms
I/O: USB Host, USB Device
Probe: PB925
Display: 5.6-inch TFT-LCD (640x480)
Weight: 1.75 kg
Datasheet: Download
