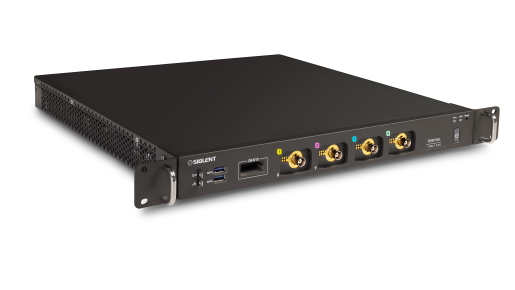

Oscilloscopio digitale modulare, 2 GHz, 4 canali, 5 GSa/S, 500 Mpts, 1U.
Bandwidth: 2 GHz
Channels: 4+EXT
Sampling rate (Max.): 5 GSa/s (10 GSa/s ESR) @ each channel
Memory Depth (Max.): 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels)
Vertical resolution: 8-bit (up to 12-bit in ERES mode, equivalent to 16-bit Hi-Res mode)
SYNC-64 to Synchronize 64 x SDS6000L
Waveform capture rate up to 750,000 wfm/s (Sequence mode)
Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
Digital channel (optional)
Waveform generator (optional)

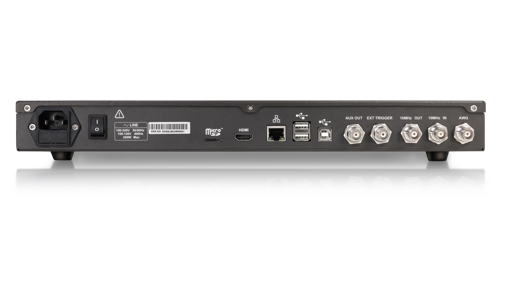

I/O: HDMI (1280*800), USB 3.0 Host x2, USB 2.0 Host x2, USB 2.0 Device (USBTMC), 1000M LAN (SCPI over VXI-11, SCPI over Telnet (port:5024), SCPI over Socket (port:5025), micro SD card, External trigger, Auxiliary output (TRIG OUT,PASS / FAIL), 10 MHz In, 10 MHz Out
Datasheet: Download
