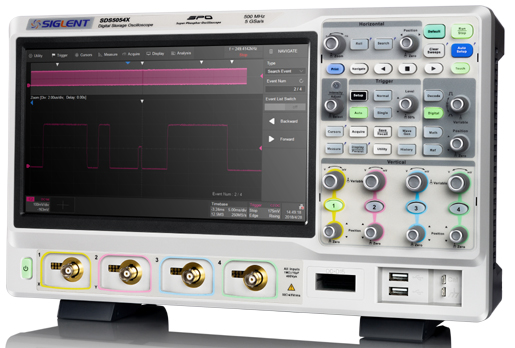

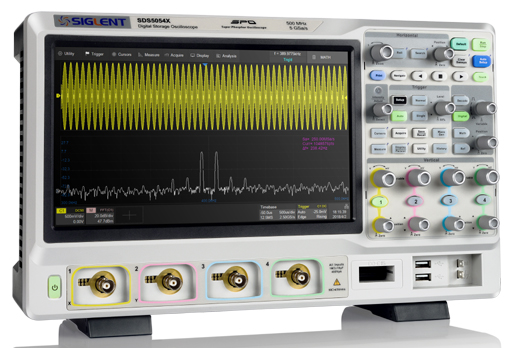

Oscilloscopio digitale a colori, 10.1'' in tecnica SPO, 4 canali, 1 GHz, 5 GSa/s, memoria 250 Mpts.
Bandwidth: 1 GHz
Sampling rate (max.): 5 GSa/s
Channels: 4 CH + EXT
Memory depth (max.): 250 Mpts/CH (interleave mode), 125 Mpts/CH (non-interleave mode)
Waveform capture rate (max.): 110,000 wfm/s (normal mode), 480,000 wfm/s (sequence mode)
Trigger types: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified
Serial trigger & decoding: I2C, SPI, UART, CAN, LIN (Standard); CAN FD, Flexray,I2S, MIL-STD-1553B (optional)

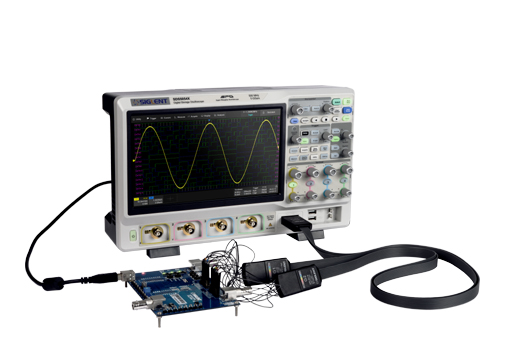

Digital channels: 16-channel; Maximum waveform capture rate up to 1.25 GSa/s, Record length up to 62.5 Mpts (optional)
Waveform generator: single channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts
I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output
Display: 10.1” TFT-LCD with capacitive touch screen (1024*600)
Dimensions 340 x 123 x 184 mm
Weight: approx. 4 kg
