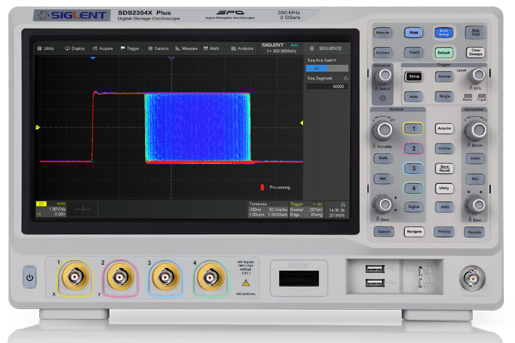

Oscilloscopio digitale a colori, display touchscreen da 10.1'', 4 canali, 100 (200) MHz, 2 GSa/s, memoria 200 Mpts/ch, opzioni matematiche avanzate, USB e LAN.
Bandwidth: 100 MHz --> Upgradable to 200 MHz
Sampling rate (max.): 2 GSa/s
Channels: 4 + EXT
Memory depth (Max.): 200 Mpts/ch (interleaving mode), 100 Mpts/ch (non-interleaving mode)
Waveform capture rate (max.): normal mode 120,000 wfm/s, sequence mode 500,000 wfm/s
Trigger type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
Serial trigger:
- Standard: I2C, SPI, UART, CAN, LIN
- Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B
16 digital channels (MSO option): maximum waveform capture rate up to 500 MSa/s, record length up to 140 Mpts/CH
Waveform generator (optional): Single channel, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

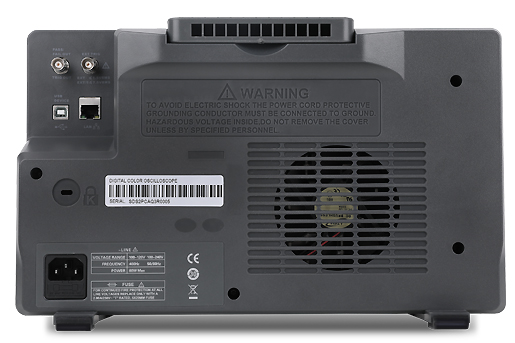

I/O: USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Probe: (Std) PP215, 200 MHz, 1 probe supplied for each channel
Display: 10.1" TFT-LCD with capacitive touch screen (1024x600)
Dimensions: 352 x 224 x 111 mm
Weight: 3.9 kg
