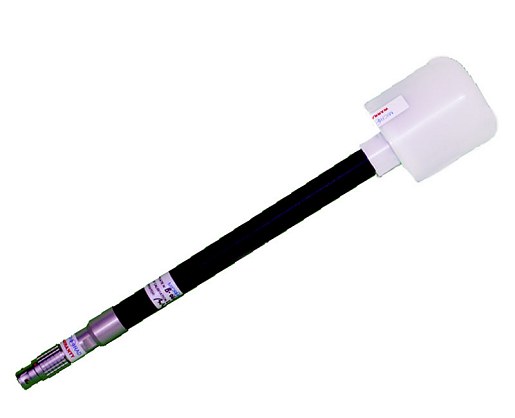

Sonda di campo E, frequenza da 5 Hz a 400 kHz, range di misura da 20 V/m a 20 kV/m, calibrazione ISO.
Frequency range: from 5 Hz to 400 kHz
Type of frequency response: flat
Measurement range: from 20 V/m to 20 kV/m (cw)
Dynamic range: 60 dB
Sensor type: capacitors
Directivity: isotropic
Accuracy:
- flatness frequency response:
--> ±0.5 dB (50 Hz ÷ 50 kHz) @ 1000 V/m
--> ±1 dB (50 Hz ÷ 400 kHz) @ 1000 V/m
- linearity: ±0.5 dB (>200 V/m)
- isotropic response (@ 100 MHz): ±0.5 dB
Size: 365 x 120 mm
Weight: 210 g
Datasheet: Download
