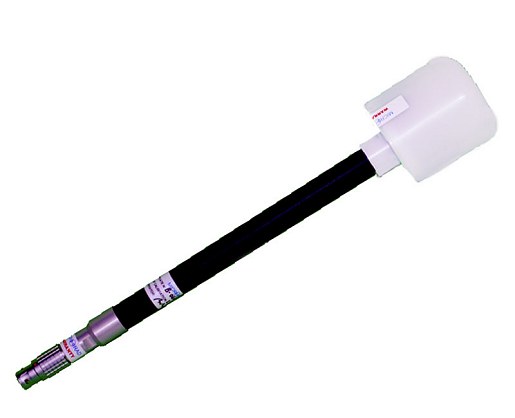

Sonda di campo B/H, frequenza da 5 Hz a 400 kHz, range di misura da 0.1 µT a 1 mT, calibrazione ISO.
Frequency range: from 5 Hz to 400 kHz
Type of frequency response: flat
Measurement range: from 0.1 μT to 1 mT
Dynamic range: 80 dB
Sensor type: coils
Directivity: isotropic
Accuracy:
- flatness frequency response: ±7% (50 Hz ÷ 50 kHz)
- linearity: ±7% (0.1 μT ÷ 1 mT)
- isotropic response (@ 100 MHz): ±6%
Size: 327 x 60 mm
Weight: 135 g
Datasheet: Download
