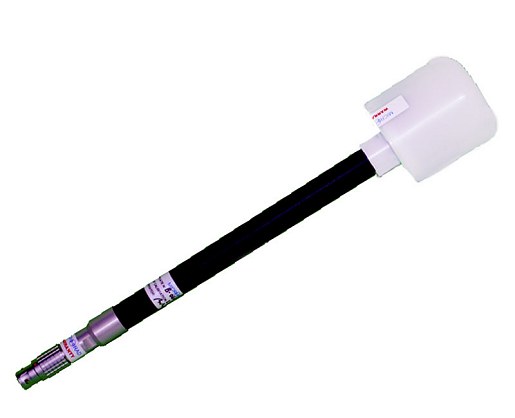

Sonda di campo E, frequenza da 100 kHz a 18 GHz, range di misura da 0.8 a 340 V/m, calibrazione ISO.
Frequency range: from 100 kHz to 18 GHz
Type of frequency response: flat
Measurement range: from 0.8 to 340 V/m (cw)
Dynamic range: 60 dB
Sensor type: diode dipoles
Directivity: isotropic
Accuracy:
- flatness frequency response:
--> ±1.5 dB (100 kHz ÷ 3 GHz)
--> ±3 dB (3 GHz ÷ 18 GHz)
- linearity: 0.5 dB (2 ÷ 200 V/m)
- isotropic response (@100 MHz): ±0.5 dB
Size: 327 x 60 mm
Weight: 135 g
Datasheet: Download
