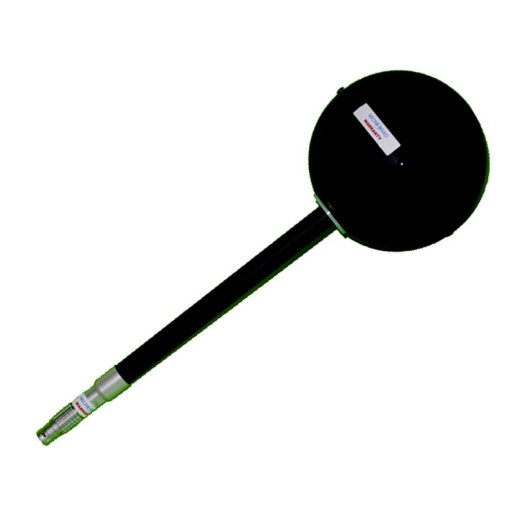

Sonda di campo H, frequenza da 30 kHz a 30 MHz, range di misura da 0.016 a 16 A/m, calibrazione ISO.
Frequency range: from 300 kHz to 30 MHz
Type of frequency response: flat
Measurement range: from 0.016 to 16 A/m
Dynamic range: 60 dB
Sensor type: coils
Directivity: isotropic
Accuracy:
- flatness frequency response: ±1.5 dB (0.5 MHz ÷ 30 MHz)
- linearity: 0.5 dB (2 ÷ 200 V/m)
- isotropic response (@ 20 MHz): ±0.5 dB
Size: 327 x 60 (Ø) mm
Weight: 120 g
Datasheet: Download
