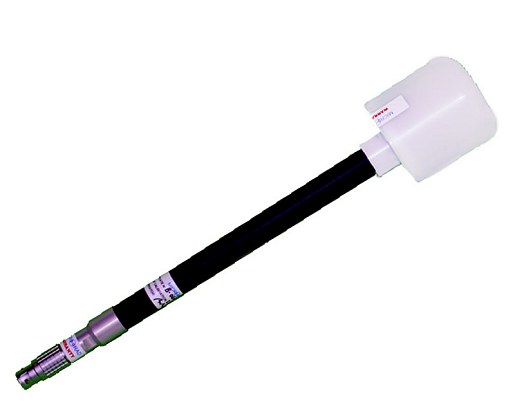

Sonda di campo E, frequenza da 400 kHz a 40 MHz, range di misura da 2 a 800 V/m, calibrazione ISO.
Frequency range: from 400 kHz to 40 MHz
Type of frequency response: flat
Measurement range: from 2 to 800 V/m (cw)
Dynamic range: 52 dB
Sensor type: diode dipoles
Directivity: isotropic
Accuracy:
- flatness frequency response: < ±1 dB (500 kHz ÷ 40 MHz)
- linearity: ±0.5 dB (2 ÷ 800 V/m)
- isotropic response (@ 20 MHz): ± 0.4 dB
Size: 327 x 60 mm
Weight: 120 g
Datasheet: Download
