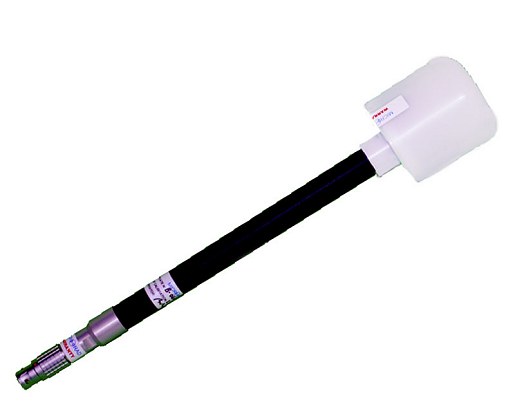

Sonda di campo E, frequenza da 3 MHz a 40 GHz, range di misura da 0.8 a 350 V/m, calibrazione ISO.
Frequency range: from 3 MHz to 40 GHz
Type of frequency response: flat
Measurement range: from 0.5 to 350 V/m (cw)
Dynamic range: > 56 dB
Sensor type: diode based system
Directivity: isotropic (tri-axial)
Accuracy:
- flatness frequency response:
--> -3/0 dB (3 MHz ÷ 10 MHz)
--> ±0.8 dB (10 MHz ÷ 1.8 GHz)
--> ±3 dB (1.8 GHz ÷ 18 GHz)
--> ±5 dB (18 GHz ÷ 40 GHz)
- linearity: ±0.5 dB (2 ÷ 350 V/m)
- isotropic response (@ 100 MHz): ±0.4 dB
- isotropic response (@ 1 GHz): ±0.5 dB
Size: 327 x 60 mm
Weight: 120 g
