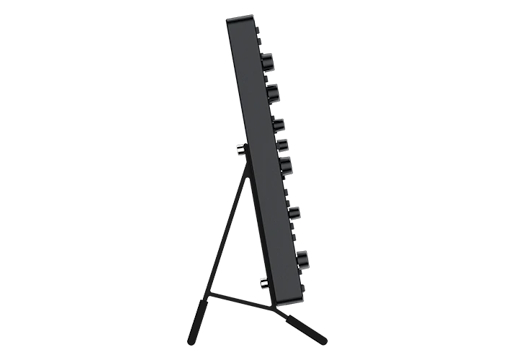

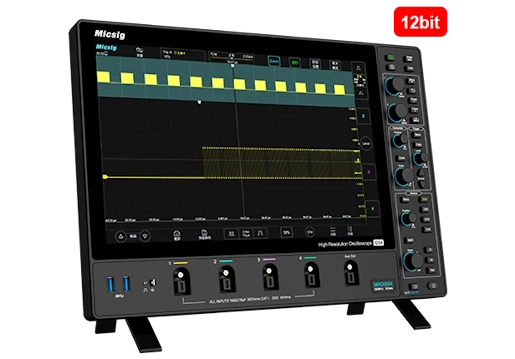

Oscilloscopio tablet a 12 bit, 350 MHz, 4 canali, 360 Mpts, 3 GSa/s, display touch da 14".
Bandwidth: 350 MHz
Vertical resolution: 12 bit
Analog channels: 4
Real-time sampling rate: 3 GSa/s
Memory depth: 360 Mpts
Rise time: ≤ 1 ns
Max. waveform capture rate: 230.000 wfms/s
Noise: < 80 μVrms
Interfaces: USB 3.0 Host, USB Type-C, HDMI, Trigger out
Display: 14" full touch display, 1920x1200 resolution
Dimension/Net weight: 400x280x35.8 mm / 4.3 kg
