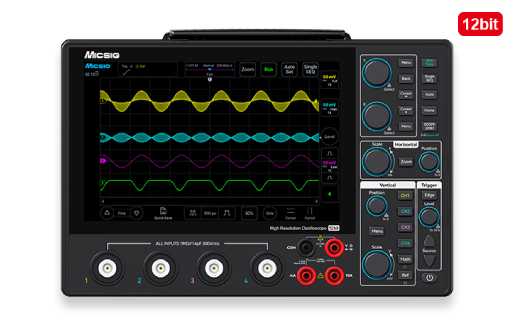

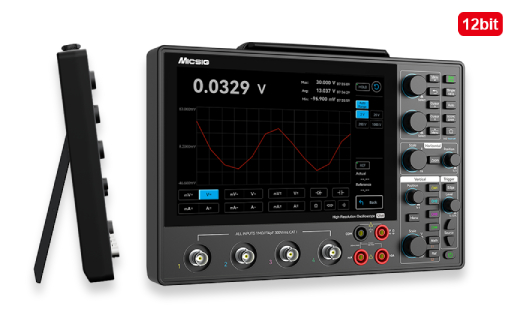

Oscilloscopio tablet a 12 bit, 200 MHz, 4 canali, 110 Mpts, 1 GSa/s, display touch da 8".
Bandwidth: 200 MHz
Vertical resolution: 12 bit
Analog channels: 4
Real-time sampling rate: 1 GSa/s
Memory depth: 110 Mpts
Rise time: ≤ 1.75 ns
Max. waveform capture rate: 50,000 wfms/s
Interfaces: USB 3.0 Host, USB Type-C, HDMI, Trigger out, LAN
Display: 8" TFT LCD capacitive touch screen, 1280*800 pixels
Dimension/Net weight: 265*174*31mm / 1.73kg
