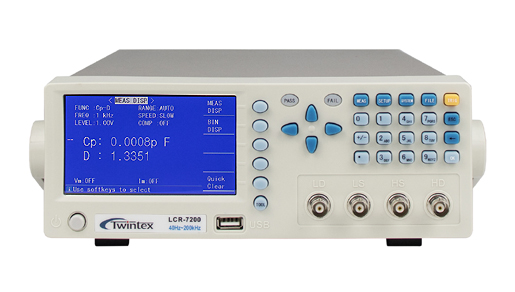

Ponte di misura RLC da 12 Hz a 100 kHz, accuratezza 0,05%.
Test parameter: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
Test signal frequency: from 12 Hz to 100 kHz continuously adjustable with min. step 0.1 mHz
Basic accuracy: 0.05%
Equivalent circuit: series, parallel
Mathematical function: deviation and percent deviation
Range mode: Auto, Hold, Manual selection
Trigger mode: Internal, Manual, External, BUS
Measurement speed: fast max. 75, medium 12, Slow 3 (times/second) ((≥ 1 kHz))
32-bit core processor
6-digit 4.3-inch TFT LCD display
4 signal source output impedance: 30 Ω, 100 Ω, 10/100, 10/CC
100 sets memories for internal storage/save
500 memories for U disk storage/save, supports FAT16 and FAT32 files
Save the last parameter settings before power off
Standard interface: RS-232, HANDLER, USB HOST, EAR PHONE, PEDAL
Optional interface: GPIB
Dimension: 265 x 100 x 340 mm
Weight: approx. 4.5 kg
