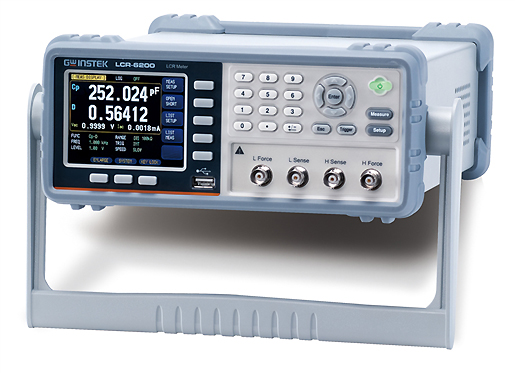

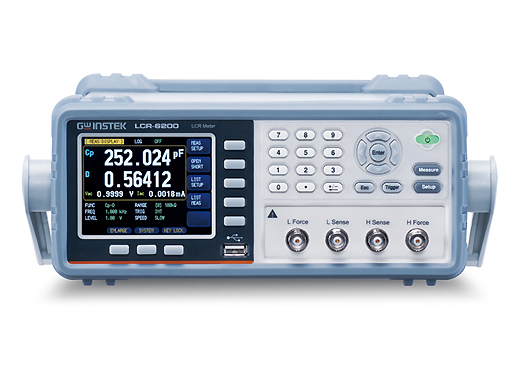

Ponte di misura RLC da 10 Hz a 200 kHz, accuratezza 0,05%.
Display: 3.5" color LCD
Consecutive test frequency
Basic accuracy : 0.05%
Measuring speed up to 25ms (max.)
Full frequency range or spot OPEN/SHORT
16 major/secondary parameter measurement combinations and two additional monitoring parameters
DCR measurement and internal D.C. bias voltage (±2.5 V)
PASS/FAIL judgment
Auto Level Control (ALC) function
BIN function provides 9BIN and 1AUX, totally 10 BIN
10 steps listed tests to select different frequency, voltage and current criteria

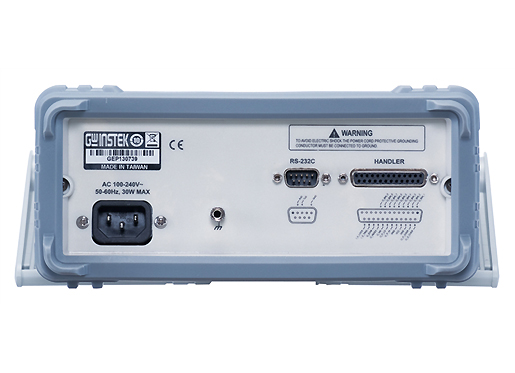

Standard interface: RS-232C, Handler and USB storage
Dimension: 265 x 107 x 312 mm
Weight: approx. 3 kg
| OPZIONE | DESCRIZIONE | PREZZO € |
|
LCR-05 |
Test fixture for axial & radial lead components | 192,00 |
| LCR-07 |
Test fixture, 2 wire with alligator clips |
103,00 |
| LCR-08 |
Test fixture (Tweezers) for SMD/Chip components |
237,00 |
| LCR-15 |
Test fixture for SMD/Chip components (0201 to 1812) |
237,00 |
| LCR-16 |
Test fixture – ±45V DC bias voltage box |
1128,00 |
| LCR-17 |
Test fixture – ±2.5ADC bias current box |
498,00 |
| GTL-232 |
RS-232C cable, 9-pin female to 9-pin, null modem for computer, approx.2m |
13,00 |
| GRA-422 |
Rack adapter panel, 19", 2U size |
55,00 |
