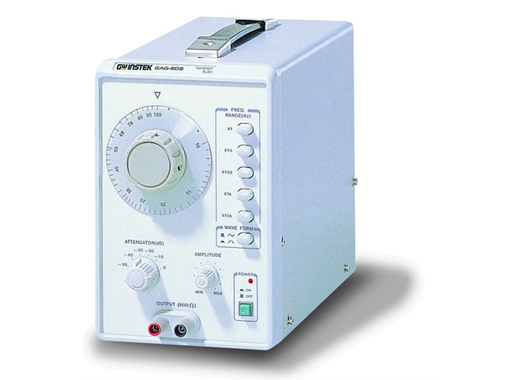

Generatore audio a bassa distorsione.
Frequency range: 10 Hz ~ 1 MHz, 5 ranges
Frequency indicator: dial scale
Frequency accuracy: ±(5% + 1 Hz)@ 10, 100 position, expect x 1 range
Output voltage: 5 Vrms (600 Ω load)
Frequency response: 10 Hz ~ 1 MHz ± 0.5 dB (@ 600 Ω load)
Reference frequency: 1 kHz
Distortion factor:
-> 500 Hz ~ 20 kHz: ? 0.02%
-> 100 Hz ~ 100 kHz: ? 0.05%
(x 10 range for 100 Hz, x 1k range for 100 kHz)
-> 50 Hz ~ 200 kHz: ? 0.3%
-> 20 Hz ~ 500 kHz: ? 0.5%
-> 10 Hz ~ 1 MHz: ? 1.5%
Output impedance: 600 Ω
Output attenuator:
-> 0, -10, -20, -30, -40, -50 dB
-> 6 ranges (accuracy ±1 dB @ 600 Ω load)
Dimension: 130 x 210 x 292 mm
Weight: approx. 3 kg
