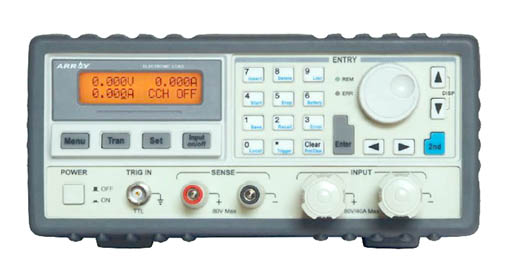

Carico elettronico 0-20 A, 0-200 V, 200 W, programmabile da PC via RS232. Funzioni di base come: CC, CV, CR, e CP. Modalità di test: CCL, CCH, CV, CRL, CRM, CRH, CPV e CPC. Fornisce un metodo efficace per testare e misurare qualsiasi sorgente di energia.
Current: from 0 to 20 A
Voltage: from 0 to 200 V
Power: 200 W @ 40° C
Minimum operation voltage @ full scale current: 1.2 V
Constant current mode:
- low range: from 0 to 2 A, resolution 0.1 mA, accuracy 0.1% + 5 mA
- high range: from 0 to 20 A, resolution 1 mA, accuracy 0.1% + 10 mA
Constant voltage mode:
- range: from 0 to 200 V
- resolution: 2 mV
- accuracy: 0.1% + 25 mV
Constant resistance mode:
- low range: 0.06 to 6.66 Ω, resolution 0.1 mΩ, accuracy 0.5% + 40 mΩ @ I> 3 A
- middle range: 6.66 to 666 Ω, resolution 2.6 µS, accuracy 0.3% + 375 µS @ V> 20 V
- high range 6.66 to 6660 Ω, resolution 0.29 µS, accuracy 0.3% + 188 µS @ V> 20 V
Constant power mode:
- range: 0 to 200 W
- resolution: 1 mW @ P< 100 W / 10 mW @ P≥ 100 W
- accuracy: 0.2% + 600 mW
4 operating modes: constant current, constant voltage, constant resistance, constant power
High-speed sequence, high-speed transient, short-circuit, battery discharge and other auxiliary functions
Minimum operating voltage is less than 0.6 V at the load's full rated current
Optional zero-voltage test accessories are available
Programmable current slew rate
Multiple groups of parameters and sequences can be saved and recalled
Support SCPI (Standard Commands for Programmable Instrumentation) and Labview, and provides necessary PC software
Dimensions: 226 x 110 x 376 mm
Weight: 5.8 kg
Datasheet: Download
