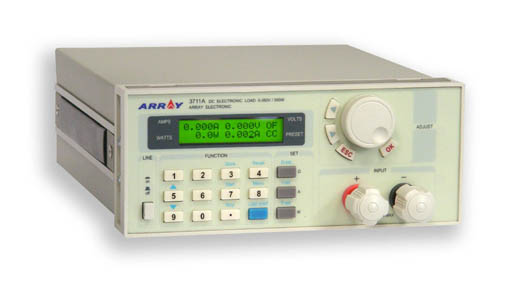

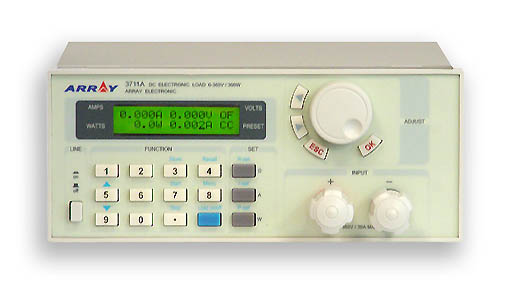

Carico elettronico programmabile, 0-30 A, 0-200 W.
Number of inputs 1
Input voltage: 0 to 360 V DC
Input current: 0 to 30 A DC
Input power: 0 to 200 W
Voltage accuracy:
- 0.2% + 3 mV (if < 4 V)
- 0.2% + 30 mV (if 4 < V < 36)
- 0.2% + 300 mV (if > 36 V)
Current accuracy:
- 0.2% + 3 mA (if < 3 A)
- 0.2% + 30 mA (if > 3 A)
Minimum resolution: Voltage 1 mV, Current 1 mA
Lowest Conductive Resistance: < 0.08 Ω
Ripple: < 10 mVpp
Standard interface: RS232
Dimensions: 212 x 88 x 250 mm
Weight: 5.0 Kg
