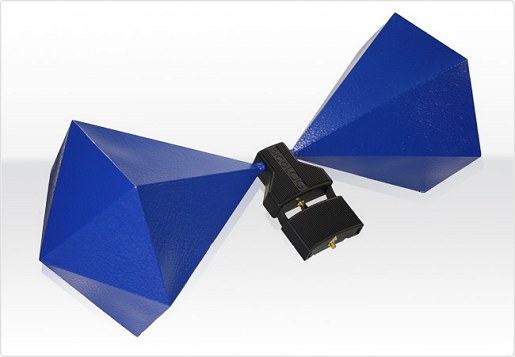

Antenna biconica attiva 30 MHz - 1 GHz.
Frequency range: from 30 MHz to 1 GHz
Max. output power: 100 mW AM
Nominal impedance: 50 Ω
Gain: from 9 to 41 dBi
Compatible with any spectrum analyzer brand
Design: biconical (radial isotropic)
RF connection: SMA socket (18 GHz) or N socket using an adapter
Calibration points: 194 (5 MHz-steps)
Dimensions: 540 x 225 x 225 mm
Datasheet: Download
